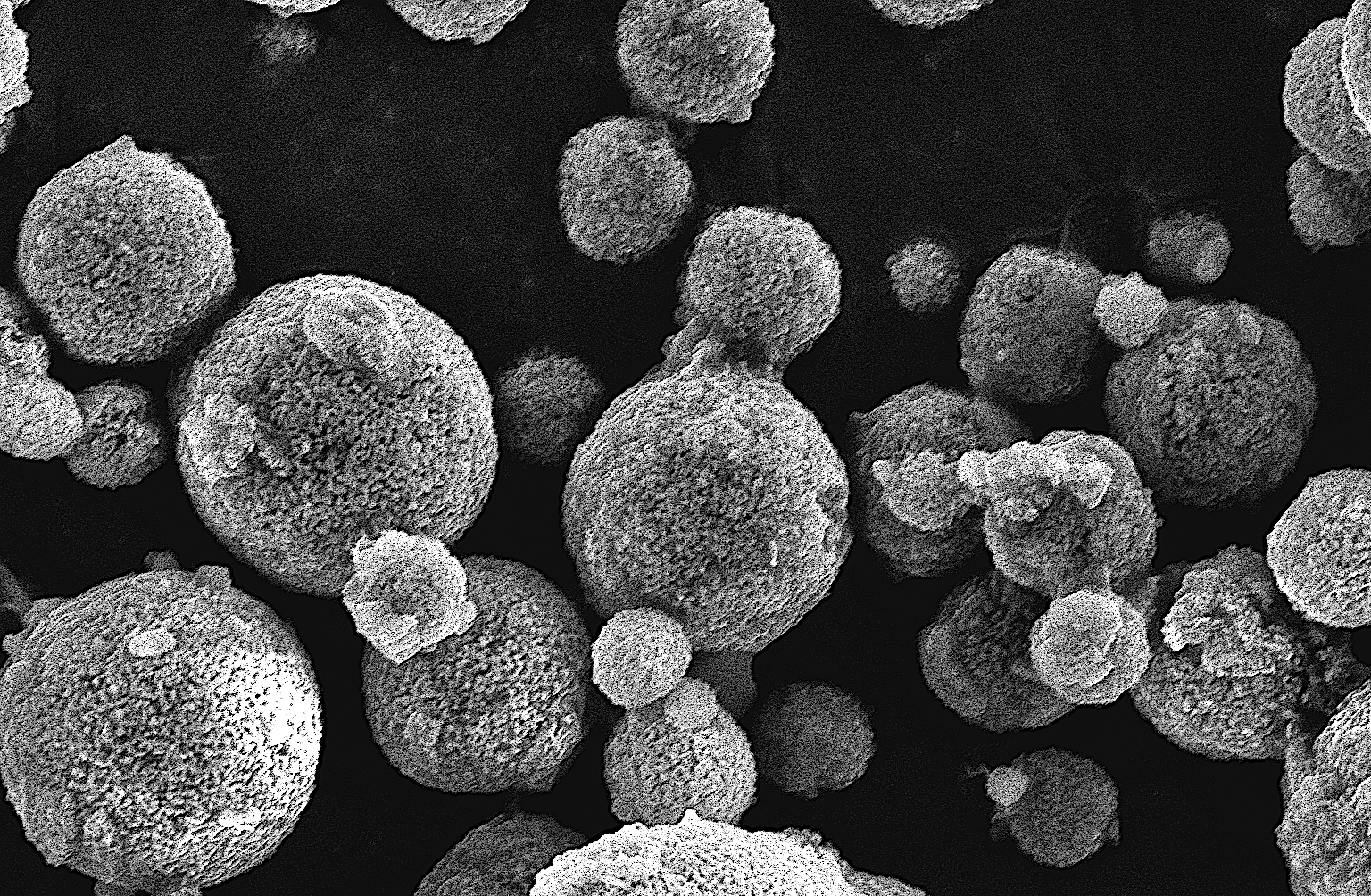

Crystron’s Cathode Active Material tackles North America’s key supply and manufacturing challenges, positioning the company to capture significant market share in the rapidly growing energy storage sector.
The global shift toward electrification and renewable energy is driving exceptional growth in the lithium-ion battery market. With a projected compound annual growth rate of 27%.
Global Li-ion battery cell demand, GWh, Base case. Source: McKinsey Battery Insights
The transition to renewable infrastructure is driving unprecedented demand for advanced battery materials. However, current manufacturing capacity falls significantly short of projected requirements.
Source: Argonne National Laboratory
As battery demand surges, the market for Cathode Active Material (CAM) is projected to expand rapidly, creating a multi-billion dollar opportunity both globally and in North America.
Source: BloombergNEF 2024, McKinsey Battery Insights 2022
Four numbers that explain why Crystron’s process wins on manufacturing, cost, energy use, and sustainability.
Fewer process steps from raw material to finished cathode.
Lower capex and opex per ton of cathode material.
Less energy required per kilogram of active material.
Closed-loop process that avoids toxic waste and water use.
Integrated process eliminates intermediate steps, reducing complexity and cost
Elimination of harmful byproducts through closed-loop manufacturing processes
Reduced calcination requirements and processing steps lower operational expenses
A single platform that cuts energy, water, waste, and cost while simplifying the cathode supply chain.

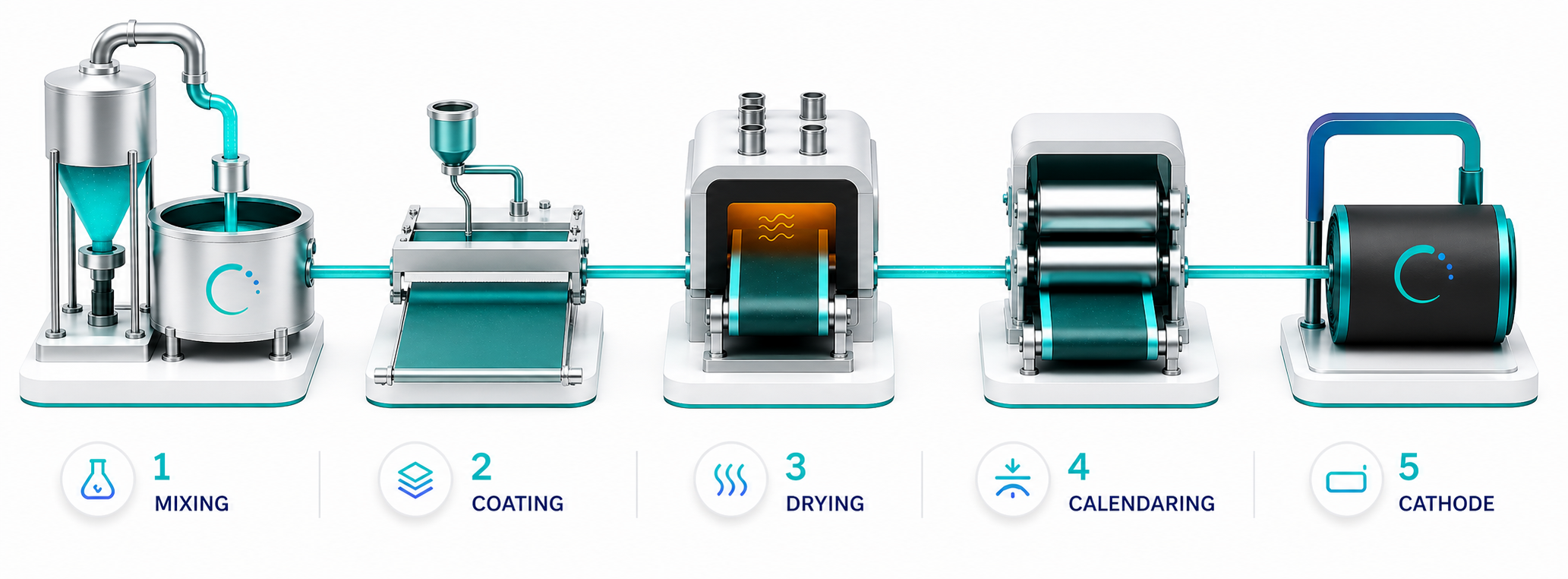

We've reimagined the supply chain, eliminating the entire pCAM stage to create a streamlined, zero-waste production pipeline.
Involves extensive mining, precipitation, and initial chemical processing steps to prepare raw materials.
Learn MoreEnergy-intensive milling, drying, and repeated calcination processes to form the active material.
Learn MoreComplex mixing, coating, drying, and assembly steps requiring toxic solvents and high energy.
Learn MoreNo toxic byproducts. All materials are recycled or reused in a closed-loop system.
Reduced calcination steps and optimized processing cut energy consumption dramatically.
Direct CAM-to-cathode process simplifies supply chain and reduces costs.
Higher Voltage = More Power (+15%)
More Energy = Longer Range (+20%)
Lower Energy = Lower Cost (-80%)
Cheaper to Make (-40%)
Zero Waste Process (-100%)
Zero Water Process (-100%)
A fusion of seasoned leadership, deep scientific expertise, and commercial acumen, collectively driving innovation in the advanced battery materials landscape.
Chief Executive Officer
LinkedIn Profile
Chief Technology Officer
LinkedIn Profile
Senior Scientist
LinkedIn Profile
Board Member
LinkedIn ProfileCrystron Technologies is at the forefront of the battery revolution, offering a unique investment proposition in a rapidly expanding global market. Our innovative technology is poised for significant growth and impact.
We invite you to join us in shaping a cleaner, more efficient energy future. For detailed information and to discuss investment opportunities, please reach out to our team.
Contact Us for Investment OpportunitiesStay informed about Crystron Technologies' progress, breakthroughs, and industry presence.
Under the Pennsylvania DEP AFIG grant, Crystron reached key technical and commercial milestones ahead of schedule while advancing its high-voltage cathode material toward customer qualification with lower cost, energy, and waste.
Read Full Article
Crystron Technologies is featured in the Delaware Innovation Space highlighting our breakthrough cathode active material (CAM) platform that eliminates waste, lowers production costs, and strengthens domestic supply chains. The Innovation Space has been instrumental in supporting our growth through their funding, mentorship, and state-of-the-art lab facilities.
Read Full Article
Crystron Technologies has entered a sponsored research collaboration with Drexel University and Dr. Wesley Chang to apply Drexel’s system-level battery diagnostics and mechanics-informed analysis to evaluate and accelerate Crystron’s integrated cathode–electrode architectures, strengthening independent validation, reducing scale-up risk, and supporting U.S.-based commercialization efforts.
Read Full Press Release
Crystron Technologies was selected as one of the top three companies in the state, winning $162,500 through the prestigious Delaware EDGE 2.0 Grant. This award recognizes our potential for outsize impact on the state's economy and validates our vision for clean battery materials.
Read Official Announcement
Crystron Technologies has been selected as one of only three high-impact startups for the EDGE 2.0 Grant Pitch Competition. On October 29, 2025 we'll compete in a bonus round for $1M in funding through the Small State Business Credit Initiative (SSBCI) under the Delaware Accelerator and Seed Capital Program.
Read Full Article
Crystron Technologies is honored to receive a $300,000 grant to further develop and scale our innovative, low-cost cathode manufacturing process. This funding will accelerate our mission to create a sustainable domestic supply chain for critical battery materials.
Read on LinkedIn
Crystron Technologies was selected as one of the first seven startups to receive the Early-Stage Growth Grant (EGG) from The Innovation Space. This award provides funding, dedicated lab space, and access to a network of expert mentors to accelerate our growth.
Read Full AnnouncementInsights on battery science, company progress, and the future of energy storage.
How a single structural flaw in LFP cascades into eighteen steps of manufacturing complexity
Every structural compensation step the olivine framework requires also introduces its own quality control challenge. The cascade does not end at the process design level — it continues step by step through the manufacturing flowsheet, accumulating quality risks that must each be independently measured, monitored, and controlled.
Why making a lithium iron phosphate CAM is so complicated — and why it doesn't have to be
Lithium iron phosphate has earned a reputation as the simple, robust workhorse of the clean energy transition. That reputation obscures a remarkable reality: LFP cathode manufacturing involves close to twenty distinct steps across three major phases, driven entirely by a single geometric quirk buried in its olivine crystal structure.
Whether you're interested in our technology, exploring investment opportunities, or seeking strategic partnerships, our team is ready to engage. Let's build a sustainable energy future together.
1209 Orange St, Wilmington, DE 19801
200 Powder Mill Rd, E500/2402B, Wilmington, DE 19803
851 Duportail Rd, Chesterbrook, PA 19087
Why making a lithium iron phosphate battery is so complicated — and why it doesn't have to be
May 17, 2026
Lithium iron phosphate, known in the industry as LFP, has become one of the most commercially successful battery chemistries in the world. It powers electric vehicles across China, backs up data centres, and increasingly stores energy from solar farms. Its reputation is built on genuine virtues: it is thermally stable, long-lived, cheap to make from abundant materials, and carries no meaningful risk of the catastrophic fires that have plagued other battery chemistries. To the outside world, LFP looks like a simple, robust, almost boring material — exactly the kind of workhorse the clean energy transition needs.
That reputation, however, obscures a remarkable industrial reality. Making LFP cathode active material is not simple at all. The manufacturing process involves close to twenty distinct steps, spread across three major phases. It demands inert atmospheres of nitrogen or argon throughout high-temperature processing, precisely engineered precursor particles, aggressive milling to sub-micron dimensions, integrated carbon coating that is chemically bound into the synthesis itself, and tightly controlled thermal ramp profiles balanced against atmosphere composition, particle size, and carbon content simultaneously. The process is not complicated because manufacturers made complicated choices. It is complicated because the crystal structure of LFP made it so.
The central issue is one of geometry — specifically, the geometry of how lithium ions move inside a single LFP crystal. LFP adopts what is called the olivine structure, named after the green mineral found in volcanic rock. It is a beautiful and exceptionally stable atomic arrangement, built around strong phosphate groups that lock the lattice together and make it nearly impossible to release dangerous oxygen even under extreme conditions. That structural robustness is the source of LFP's safety advantage. But embedded within the same framework is a severe limitation: lithium ions, which must shuttle in and out of the cathode during every charge and discharge cycle, can only travel in one direction through the crystal.
Computational studies by Gerbrand Ceder and collaborators established this with precision — lithium diffuses predominantly along the [010] crystallographic direction, and the energy barriers in every other direction are so high as to be practically impassable. Where layered oxide cathodes like NMC allow lithium to move through two-dimensional sheets, and spinel structures open three-dimensional pathways, olivine LFP confines its lithium to a set of parallel, one-dimensional tunnels, like traffic on a single-lane road with no intersections.
This one-dimensional transport topology would be a manageable limitation in isolation. But olivine LFP has a second structural vulnerability that transforms the first from a constraint into a crisis. During synthesis, iron atoms and lithium atoms can accidentally swap positions within the crystal lattice. These swaps are called antisite defects, and in most materials a small concentration of point defects is a minor inconvenience. In olivine LFP, an iron atom sitting in a lithium site does not merely perturb the local chemistry — it physically blocks the one-dimensional tunnel that lithium must travel through.
Atomistic modelling by M. Saiful Islam and others showed that even antisite concentrations of one to two percent can substantially reduce lithium mobility, increase internal resistance, and lower the practical capacity of the material. The architecture of the olivine framework means there is no alternative route around a blocked channel. The defect is not a pothole in a road network — it is a boulder dropped into a single-lane tunnel.
These two structural facts — one-dimensional diffusion and catastrophic antisite sensitivity — together explain why modern LFP manufacturing evolved into such a process-intensive ecosystem. The first and perhaps most revealing consequence is the necessity of a separate precursor synthesis stage. In a simpler world, one might imagine mixing lithium, iron, and phosphate sources together and calcining the mixture directly. Early attempts at this kind of direct solid-state synthesis produced materials with broad particle size distributions, incomplete lithiation, and high antisite concentrations — precisely the defects that block the one-dimensional tunnels.
The industry's solution was to first synthesise ferric phosphate, FePO₄, as a carefully engineered intermediate — the so-called precursor cathode active material or pCAM. This intermediate allows manufacturers to control the iron-to-phosphorus ratio, crystal morphology, and local compositional uniformity before a single lithium atom is introduced. The pCAM route is not a chemical convenience. It is a crystallographic control strategy, designed to build a structurally ordered scaffold into which lithium can subsequently be inserted with minimal antisite formation.
Carbon coating represents a second layer of structural compensation. LFP has intrinsically poor electronic conductivity, near 10⁻⁹ siemens per centimetre, roughly ten billion times lower than copper. Without modification, electrons cannot move efficiently through the material, and electrochemical utilisation collapses. Carbon sources — sucrose or glucose — are added before calcination, where they decompose, coat particle surfaces, influence local oxygen activity, stabilise iron in the correct oxidation state, and suppress undesirable phase formation during high-temperature processing. Carbon is not applied after LFP is made. It participates in making LFP.
The inert atmosphere requirement follows the same logic. Olivine LFP requires iron in the +2 oxidation state to function correctly. Iron in the +3 state disrupts the lattice, promotes antisite formation, and degrades electrochemical performance. But Fe²⁺ oxidises readily at the elevated temperatures needed for solid-state synthesis. Consequently, every calcination and lithiation step must be carried out under nitrogen or argon, with tightly controlled oxygen partial pressure throughout. The expensive furnaces and gas-handling infrastructure now standard in LFP plants exist because the olivine framework demands a chemically reducing environment during formation.
Finally, the lithiation step itself — heating the pCAM-carbon-lithium mixture to between 600 and 750 degrees Celsius — requires a delicate balance. High temperatures are needed because lithium diffusion through solids is inherently slow and substantial thermal activation is required to complete the crystallisation. Yet those same temperatures promote particle coarsening, which worsens antisite sensitivity, and can drive defect formation if atmosphere control lapses for even a moment. Manufacturers navigate this by optimising dwell time, ramp rate, carbon content, particle size, and gas composition simultaneously, in a process that resembles engineering a compromise more than executing a recipe.
Viewed in this light, LFP manufacturing is not a collection of independent steps added pragmatically over decades of industrial development. It is an interconnected compensation network, each element of which exists because the olivine crystal structure imposed a constraint that required engineering around. The structure did not merely influence the process — it dictated it. Understanding this relationship is more than a scientific curiosity. As the battery industry moves toward higher energy density, lower cost, domestic manufacturing, and process simplification, the structural roots of manufacturing complexity may become as strategically important as electrochemical performance itself. Materials that carry fewer structural penalties may ultimately not just perform better — they may be fundamentally easier and cheaper to produce at scale.
How a single structural flaw in LFP cascades into eighteen steps of manufacturing complexity — and why that makes LFP nearly impossible to produce at quality outside of China
May 27, 2026
The previous essay in this series established that LFP manufacturing is not complicated by accident. Every major process step — the precursor synthesis, the carbon coating, the inert atmosphere, the high-temperature lithiation — exists because the olivine crystal structure of LiFePO₄ imposes constraints that engineers were forced to work around. But there is a second layer to this story, one that moves from process chemistry into industrial operations: every structural compensation step that the olivine framework requires also introduces its own quality control challenge. The cascade does not end at the process design level. It continues, step by step, through the manufacturing flowsheet, accumulating quality risks that must each be independently measured, monitored, and controlled. What begins as a crystallographic flaw becomes, at the factory scale, an extraordinarily demanding quality management burden.
The ferrous sulphate conversion route is the industry standard for LFP cathode active material (CAM) production. It runs across three phases — pCAM synthesis, lithiation, and post-processing — and involves eighteen discrete operational steps before a finished, qualified product reaches the cell manufacturer. Each of those steps is not simply a processing operation. It is also a quality gate, at which a specific set of variables must be held within narrow tolerances to prevent the structural flaw from reasserting itself. Miss the window at any step, and the defect that the entire process was designed to prevent — an antisite-laden, poorly crystallised, inhomogeneous LFP — comes back.
The precursor synthesis phase spans seven steps, from dissolution of ferrous sulphate through to handling and transfer of the finished FePO₄ intermediate. Its purpose is crystallographic control: building a compositionally uniform, morphologically optimised ferric phosphate scaffold before lithium is introduced. Every step in Phase 1 is simultaneously a defect-prevention step, and every defect-prevention step requires its own quality measurement.
Step 1.1, solution preparation, requires dissolution of FeSO₄ in deionised water with controlled Fe²⁺ concentration and pH. Impurities in the iron source introduce trace metals that can poison nucleation and create heterogeneous crystal populations. Step 1.2, the adjust and hold operation, fine-tunes Fe²⁺ concentration and pH for the conversion reaction. The pH window for successful precipitation is narrow — the process specification calls for pH 2.0 to 3.0 — and deviations of even half a unit alter the crystal phase formed. Too acidic and precipitation is incomplete; too alkaline and the wrong iron phosphate phase crystallises.
Step 1.3 prepares the phosphate reagent solution. The phosphorus-to-iron ratio directly determines the stoichiometry of the precipitate formed in Step 1.4, and stoichiometric precision here is one of the primary levers controlling antisite defect concentration in the final LFP. Step 1.4, precipitation and conversion, is the heart of pCAM synthesis: FeSO₄ and the phosphate solution are combined under controlled pH and temperature to precipitate FePO₄. Temperature must be held at 60 to 80 degrees Celsius throughout. Any drift in temperature, pH, or mixing rate produces inhomogeneous nucleation, yielding a broad particle size distribution that carries through every subsequent step unchanged.
Step 1.5, aging, holds the precipitate to allow crystal maturation and uniform particle growth. Its entire purpose is quality: rush it, and immature crystals with uneven internal composition enter the calcination furnace. Step 1.6, calcination at 500 degrees Celsius in an inert atmosphere, dehydrates the dihydrate phase FePO₄·2H₂O to orthorhombic FePO₄. Any oxygen present at this stage oxidises Fe²⁺ to Fe³⁺ in uncontrolled ways, and the resulting mixed-valence precursor produces elevated antisite concentrations during lithiation. Step 1.7, pCAM handling and storage, is often the least respected quality step in Phase 1. The finished FePO₄ precursor is hygroscopic and surface-reactive — exposure to ambient humidity even during transfer degrades the carefully controlled morphology and undoes all prior defect control.
| Step | Process Step | Quality Risk if Not Controlled |
|---|---|---|
| 1.1 | FeSO₄ Solution Preparation | Trace metal impurities in feed poison nucleation; Fe²⁺ concentration drift alters precipitation stoichiometry |
| 1.2 | Adjust & Hold | pH outside 2.0–3.0 window forms wrong crystal phase; wrong Fe:P ratio set here propagates to antisite defects |
| 1.3 | Phosphate Solution Prep | P:Fe ratio error leads to off-stoichiometry precipitate; incorrect phase composition in pCAM |
| 1.4 | Precipitation / Conversion | Temperature or pH excursion produces broad PSD and inhomogeneous crystal nucleation; impossible to correct downstream |
| 1.5 | Aging / Maturation | Premature termination leaves immature crystals with internal composition gradients; elevated defects in final LFP |
| 1.6 | Calcination at >500 °C | O₂ ingress oxidises Fe²⁺/Fe³⁺; off-spec atmosphere = mixed valence pCAM = elevated antisite defects after lithiation |
| 1.7 | pCAM Handling & Storage | Moisture uptake degrades surface morphology; humidity excursion during transfer undoes all prior defect control |
Phase 2 is where the pCAM is converted to final LiFePO₄. It spans six steps. The quality demands here are, if anything, more stringent than in Phase 1, because the variables interact with each other in ways that make independent optimisation impossible. Atmospheric control, particle size, carbon content, temperature, and ramp rate are all interdependent. Controlling one without monitoring the others is not merely suboptimal — it is a reliable path to off-spec material.
Step 2.1, mixing of all ingredients — FePO₄ pCAM, Li₂CO₃, and sucrose as carbon precursor — requires precise stoichiometric weighing and thorough homogenisation. The carbon source is not simply a conductivity additive: it participates directly in the crystallisation chemistry, stabilising Fe²⁺ through local reduction and influencing crystal growth morphology. Step 2.2, bead milling for particle size reduction, targets a specific D50 but also introduces contamination risk from milling media wear — metallic or ceramic particles in the nanometre range that cannot be easily separated from the LFP slurry.
Step 2.3, spray drying, converts the milled slurry into uniform spherical granules. Inhomogeneous granules — those with uneven carbon distribution or variable packing density — enter the lithiation furnace and produce localised variations in reaction completeness. Step 2.4, the lithiation and solid-state reaction at 600 to 750 degrees Celsius, is the most sensitive quality gate in the entire process. The structural transformation is irreversible: once the olivine phase crystallises, defects are locked in. A few hundred parts per million of oxygen in the furnace atmosphere is sufficient to shift iron valence and introduce phase impurities detectable only by expensive analytical methods downstream.
Step 2.5, controlled cooling under inert atmosphere, is frequently underestimated. Rapid or uncontrolled cooling creates thermal gradients within particles, introducing mechanical stress and surface crack formation. Oxidation of the particle surface during cooling creates a resistive shell that impairs electrochemical performance even in a particle whose bulk is correctly ordered. Step 2.6, unloading of the calcined LiFePO₄, represents a transition from a controlled inert environment to ambient conditions. Nanosized LFP particles have high surface energy and react measurably with atmospheric moisture and oxygen at room temperature. Controlled unloading — with atmosphere blanketing, humidity monitoring, and rapid transfer to sealed containers — requires infrastructure and process discipline that is neither trivial nor inexpensive.
| Step | Process Step | Quality Risk if Not Controlled |
|---|---|---|
| 2.1 | Mixing All Ingredients | Off-stoichiometry Li:Fe:P or uneven C distribution produces incomplete lithiation; excess Li₂CO₃ impurity phases |
| 2.2 | Bead Milling | Media contamination introduces metallic impurities; PSD outside target = diffusion limitation or elevated CCT risk |
| 2.3 | Spray Drying | Inhomogeneous granules = localised under-reaction in furnace; uneven carbon shell = conductivity variation between batches |
| 2.4 | Lithiation at 600–750 °C | Any atmosphere excursion or temperature drift irreversibly locks in defects; mixed-phase material with reduced capacity |
| 2.5 | Controlled Cooling | Rapid cooling = thermal stress cracks; atmosphere lapse = surface oxidation = high resistance shell on particles |
| 2.6 | Unloading | Ambient exposure of nano-LFP = surface degradation; no second chance once particles contact air without protection |
Post-processing spans eight further steps and exists almost entirely because nanosizing is mandatory. If the olivine framework permitted micron-scale particles, the agglomeration, size distribution, and surface area problems addressed in Phase 3 would either not exist or could be managed with far simpler operations. Instead, Phase 3 is a further cascade of quality steps, each responding to the physical consequences of having made particles as small as the crystal demanded.
Steps 3.1 and 3.2, milling and jet milling respectively, break apart the soft agglomerates that form during high-temperature calcination and reduce particle size to the target D50 specification. Jet milling uses high-pressure gas rather than grinding media, avoiding contamination — but introduces its own quality variables in nozzle wear, feed rate uniformity, and classifier settings. Step 3.3, final sieving and classification, removes oversized particles that would create electrochemically dead zones at the electrode level. Particles above the upper size limit reduce capacity in proportion to their volume fraction, because their internal diffusion distance exceeds the operational limit imposed by the olivine structure.
Steps 3.4 through 3.8 — product testing, packaging, labelling, and storage — represent the quality assurance and logistics layer. Testing at Step 3.5 involves chemical analysis by ICP-OES for elemental composition and impurities, laser diffraction for particle size distribution, BET surface area measurement, tap density, and full electrochemical characterisation in half-cell format. Each measurement catches a different failure mode from a different upstream step: BET catches milling excursions, ICP catches contamination events, electrochemical testing catches defect levels that passed through all prior steps undetected. Nanosized LFP is sufficiently reactive that improper storage measurably degrades product within weeks.
| Step | Process Step | Quality Risk if Not Controlled |
|---|---|---|
| 3.1 | Milling / Classification | Incomplete deagglomeration = bimodal PSD entering jet mill; oversized agglomerates cause electrode defects |
| 3.2 | Jet Milling (PSD Control) | Nozzle wear or feed rate variation = PSD drift; classifier malfunction passes oversized particles to final product |
| 3.3 | Final Sieving / Classification | Oversized particles pass to cell manufacturer; capacity loss proportional to volume fraction above D90 spec |
| 3.4–3.8 | Testing, Pack, Label, Store | Inadequate QC testing misses defect-laden batches; improper storage degrades nano-LFP surface within weeks |
The eighteen steps described above do not simply add operational cost in proportion to their number. They interact. A quality excursion at Step 1.2 — a pH deviation of 0.5 units during precipitation — may not manifest as a measurable failure until Step 3.5 electrochemical testing, at which point an entire batch of calcined material must be quarantined or reworked. The olivine structure's sensitivity to antisite defects means that defects introduced early in the process are amplified by subsequent steps rather than diluted. A heterogeneous pCAM with broad particle size distribution enters the lithiation furnace and exits as a heterogeneous LFP with elevated defect concentration. The entire chain is a quality dependency graph with no error-tolerance buffers.
Each step in the process requires not just equipment, but the analytical capability to measure whether the step was executed within specification. pH control at Step 1.2 requires calibrated online electrodes and automated dosing systems. Atmosphere control at Steps 1.6 and 2.4 requires oxygen analysers, gas purity monitoring, and furnace integrity management. Particle size at Steps 2.2 and 3.2 requires laser diffraction instruments with validated calibration standards. Electrochemical testing at Step 3.5 requires battery cycling infrastructure, reference electrode systems, and experienced analysts capable of distinguishing a defect signature from a measurement artefact. This is a specialised, LFP-specific quality management system that took the Chinese industry over a decade to develop and institutionalise.
China currently accounts for approximately 99 percent of global LFP cathode active material production capacity. This concentration is sometimes attributed primarily to raw material access, labour cost, or government industrial policy — and each of these factors is real. But the quality control analysis points to a deeper explanation: LFP's structural complexity created not just process complexity but ecosystem complexity, and ecosystem complexity is the hardest thing to replicate.
Chinese LFP manufacturers — led by companies such as Hunan Yuneng, Shenghua New Energy, and Guizhou Anda — did not arrive at their current quality capability overnight. The Chinese industry spent roughly fifteen years developing and accumulating the supply chain, institutional knowledge, equipment specialisation, and process learning that the eighteen-step compensation network requires. Ferrous sulphate feed materials of the purity and consistency required for Step 1.1 are sourced from a handful of qualified Chinese producers operating to battery-grade specifications developed collaboratively with cathode manufacturers. Precision spray drying equipment sized and configured for nano-particle LFP slurries is supplied by a small number of vendors who have optimised their machines specifically for this application. Inert-atmosphere rotary furnaces capable of the precise atmosphere and temperature profiles required for Step 2.4 are manufactured by Chinese furnace companies with deep application experience accumulated over hundreds of production installations.
The analytical instruments, the calibration standards, the experienced process engineers who know which quality metrics predict downstream failure, the rework protocols for off-spec batches, the qualified logistics providers who maintain the cold-chain and humidity controls required for nano-LFP shipment — all of this constitutes an industrial ecosystem that has co-evolved with the process requirements of the olivine crystal structure. It cannot be replicated by purchasing equipment and hiring engineers. It must be grown, and growing it takes time, capital, and the operational feedback that only comes from running a process repeatedly at scale until its failure modes are understood intimately.
The conventional framing of battery supply-chain security focuses on raw materials — lithium, iron, phosphate, and the chemical precursors that feed LFP production. This framing is correct but incomplete. The deeper dependency, the one that is harder to see and harder to replicate, is the accumulated quality management capability that the olivine crystal structure demanded. Every structural compensation step that the crystal required — the pCAM precursor route, the carbon coating chemistry, the inert atmosphere calcination, the aggressive nanosizing, the tight PSD engineering — also required a corresponding quality control capability. Multiply eighteen process steps by the analytical, operational, and institutional knowledge required to control each one, and what emerges is not just a manufacturing flowsheet but a quality management system of remarkable complexity. China built that system. The rest of the world has not, yet.
The implication for battery materials innovation is significant. Materials that carry fewer structural penalties — materials whose crystal frameworks are more tolerant of defects, whose synthesis temperatures are lower, whose diffusion topology is multidimensional, and whose particle size requirements are less stringent — would not just be easier to process. They would accumulate fewer quality risks per unit of manufacturing effort, generate shorter quality dependency chains, and be more accessible to new entrants operating outside established production ecosystems. The quality problem is, in the end, another expression of the same structural lesson: the crystal does not merely dictate the process. It dictates the quality burden that every manufacturer must carry, and the ecosystem that must be built to carry it reliably.
